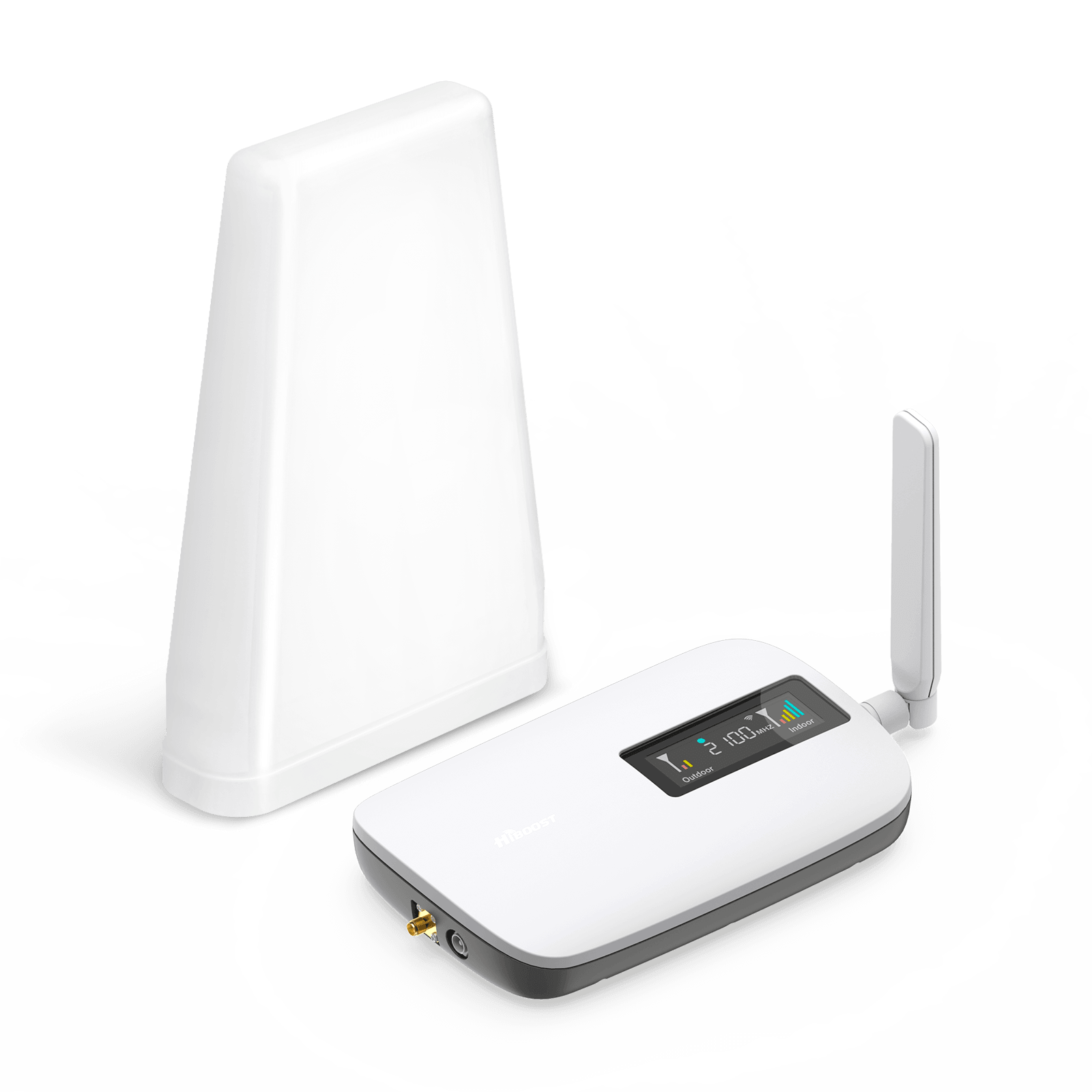

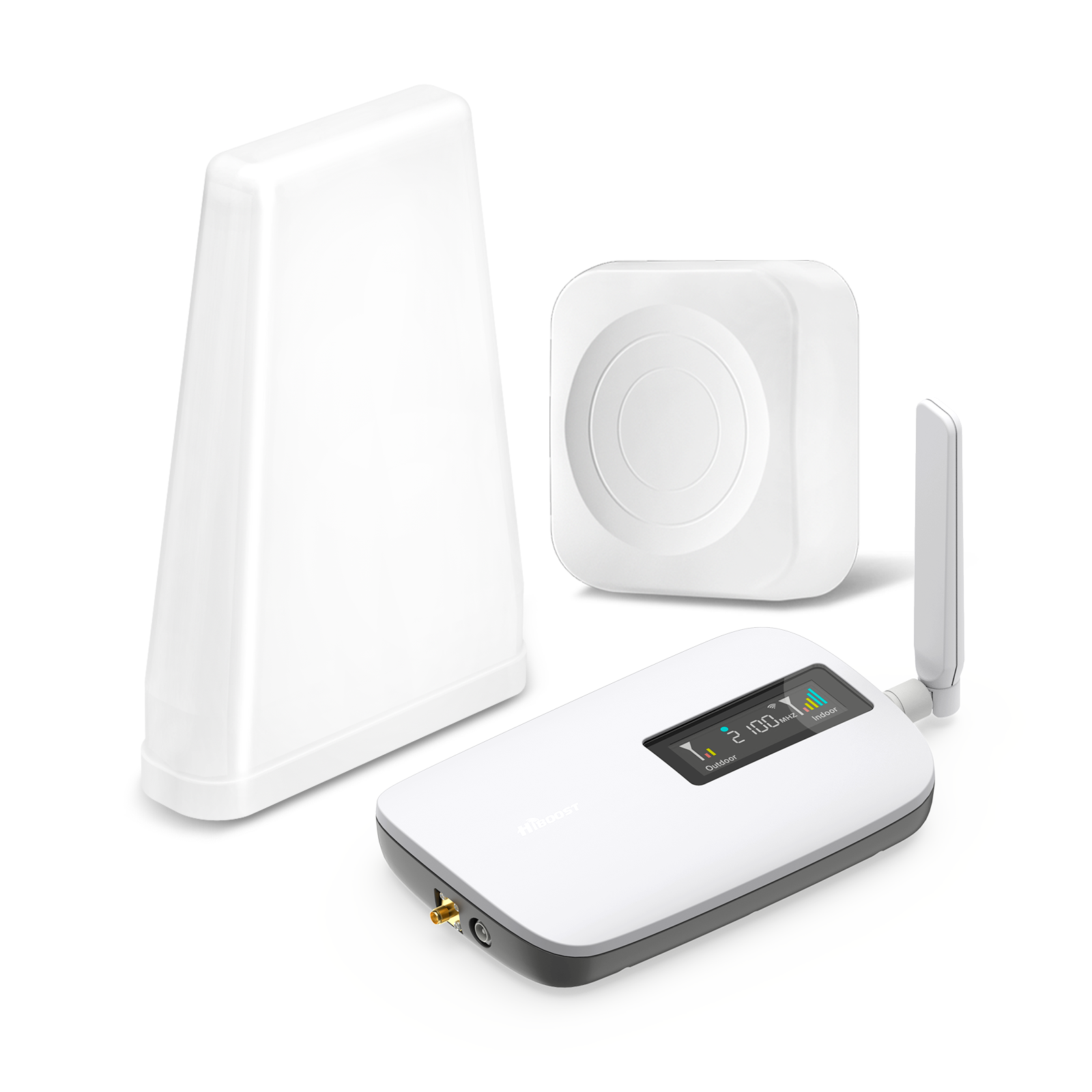

HiBoost Sidekick Cell Phone Signal Booster
Payment Secure

Instantly Boost Your Signal Bars

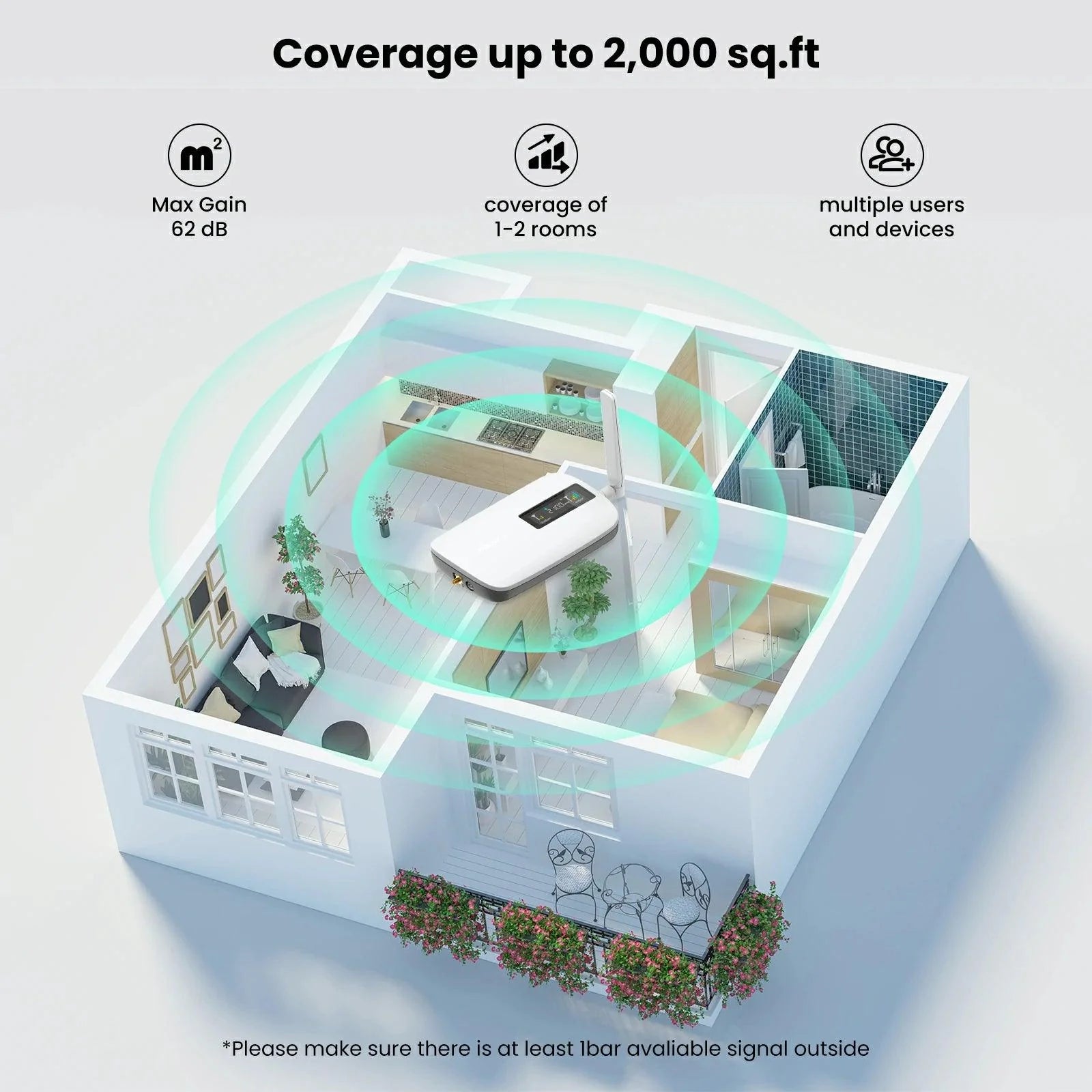

The Sidekick signal booster delivers clearer calls and faster data for homes up to 2,000 sq. ft.

Maximium Output Power:
UL 18 dBm, DL 10 dB

Free Up Space:
7.6 x 5 x 1.3 in

Maximium Gain:62 dB


5G
Compatible

Coverage:
500 - 2,000 Sq. Feet
ideal for Single Room

Works Band:
Band 12-17/Band 13/Band 5
Band 25-2/Band 4/Band 66

Supported Standards:
CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all the cellular standards.

Carriers:

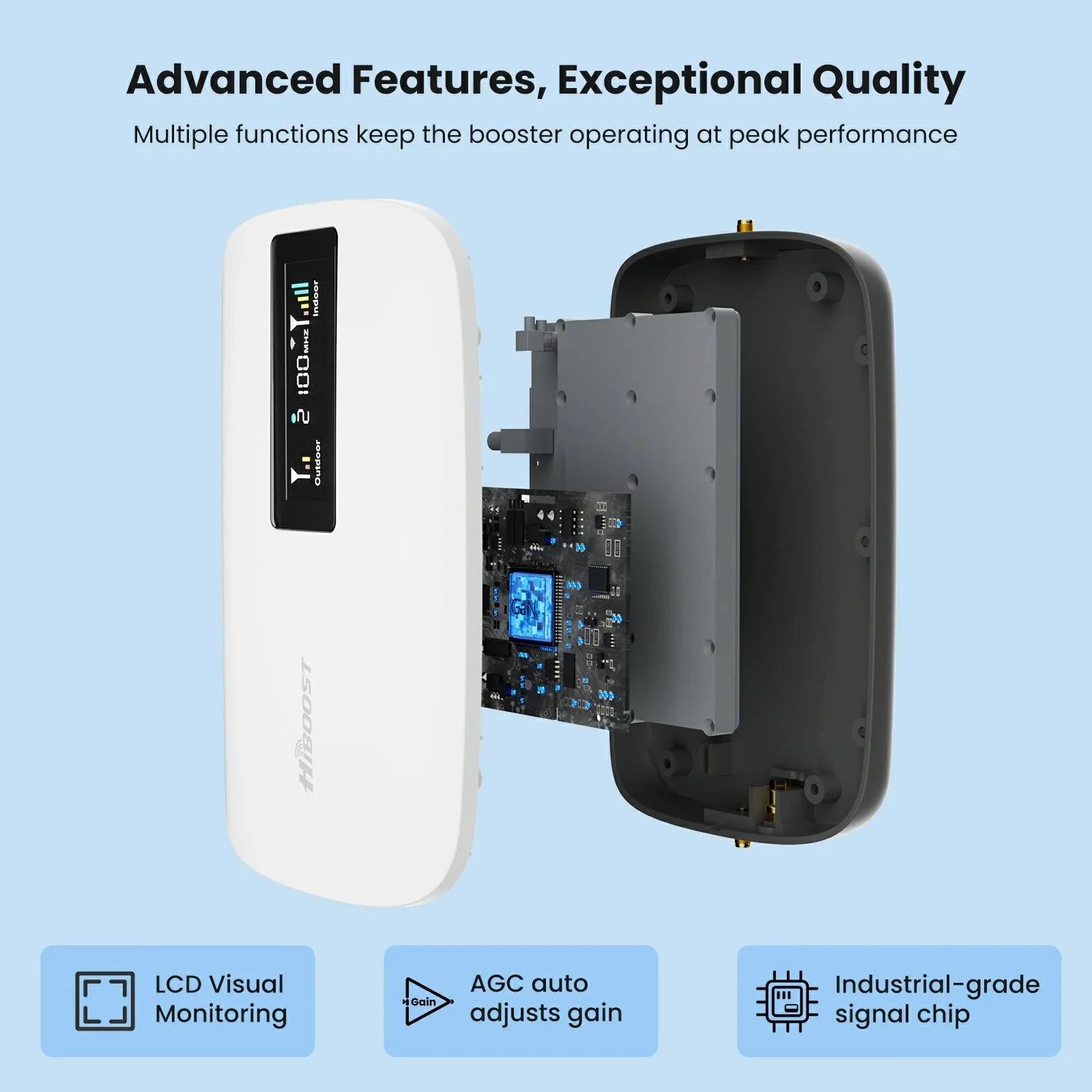

Exceptional Performance & Intelligent Design

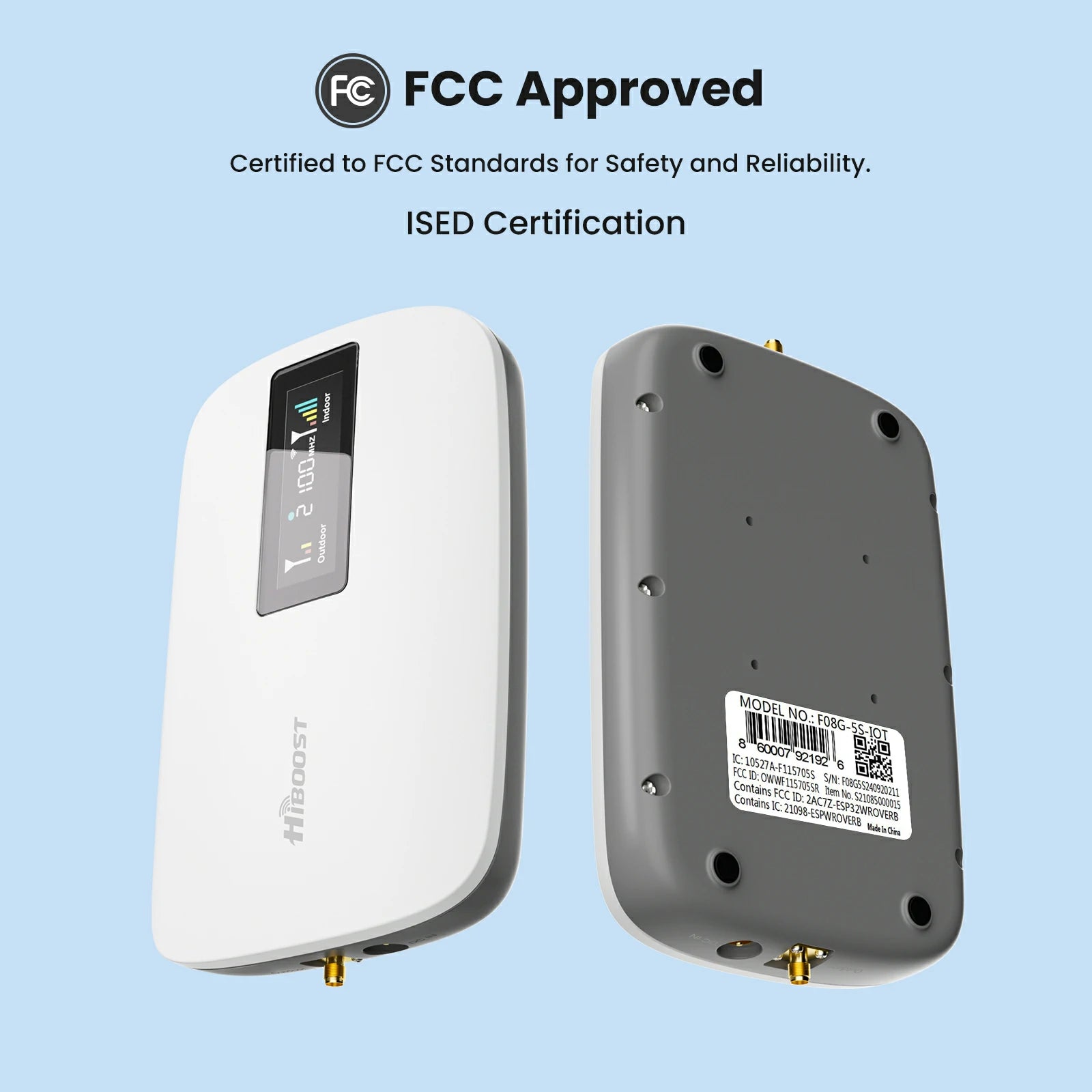

FCC approved

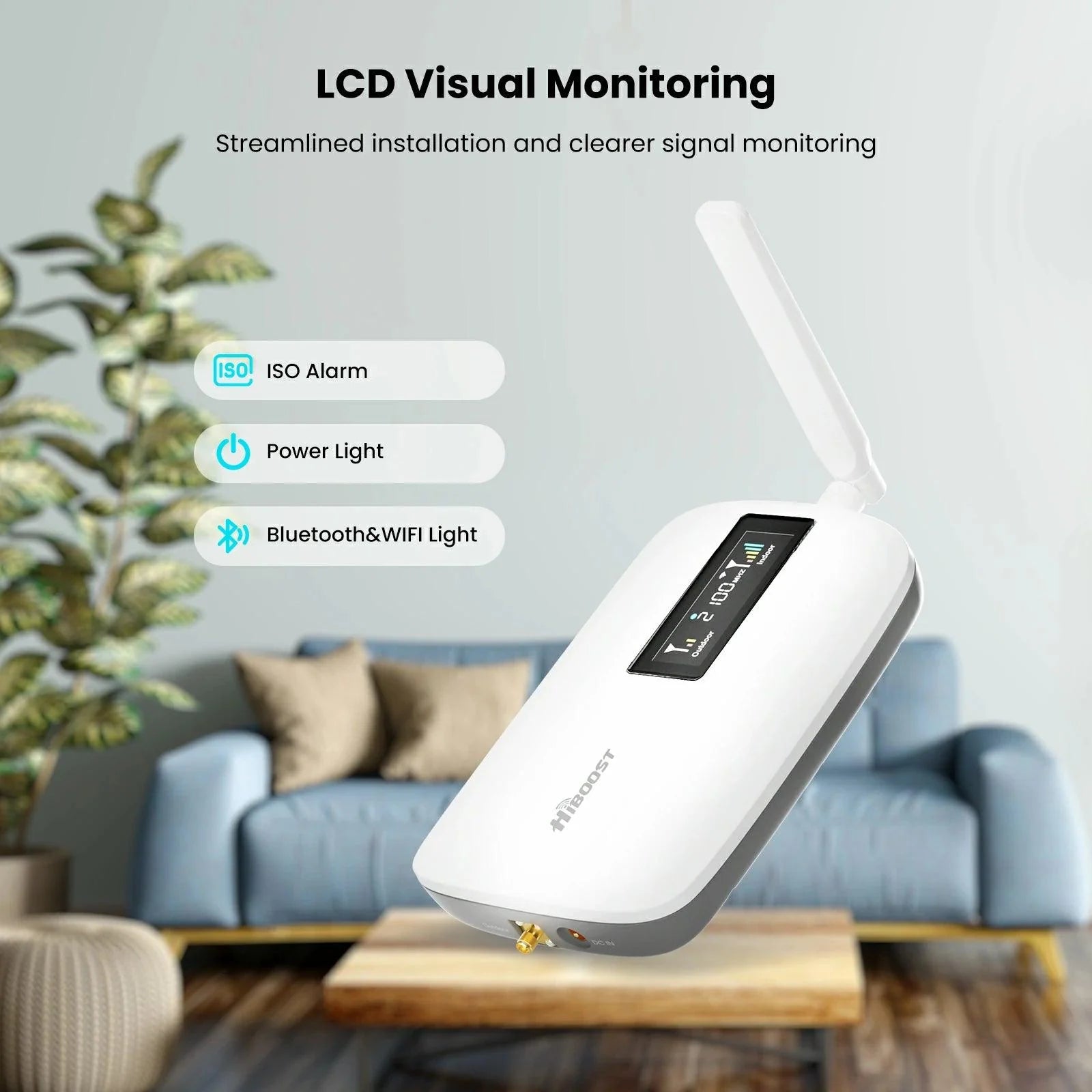

• LCD Visual Monitoring
Real-time monitoring of gain, frequency, power, etc. on the LCD display helps fine-tune performance for optimal output.
• Smart Chip AGC
Booster features AGC technology to intelligently detect and adjust signal strength for optimal performance.
• Carrier-Grade Components
Boosters feature carrier-grade components, delivering reliable and long-lasting performance.

Easily stay connected
anytime, anywhere
Signal Supervisor App for All Controls






- Video Install Guide
- Remote Monitoring
- Real-time Monitoring
- Technical Support & Warranty
- Customer Support Ticket& Online Chat

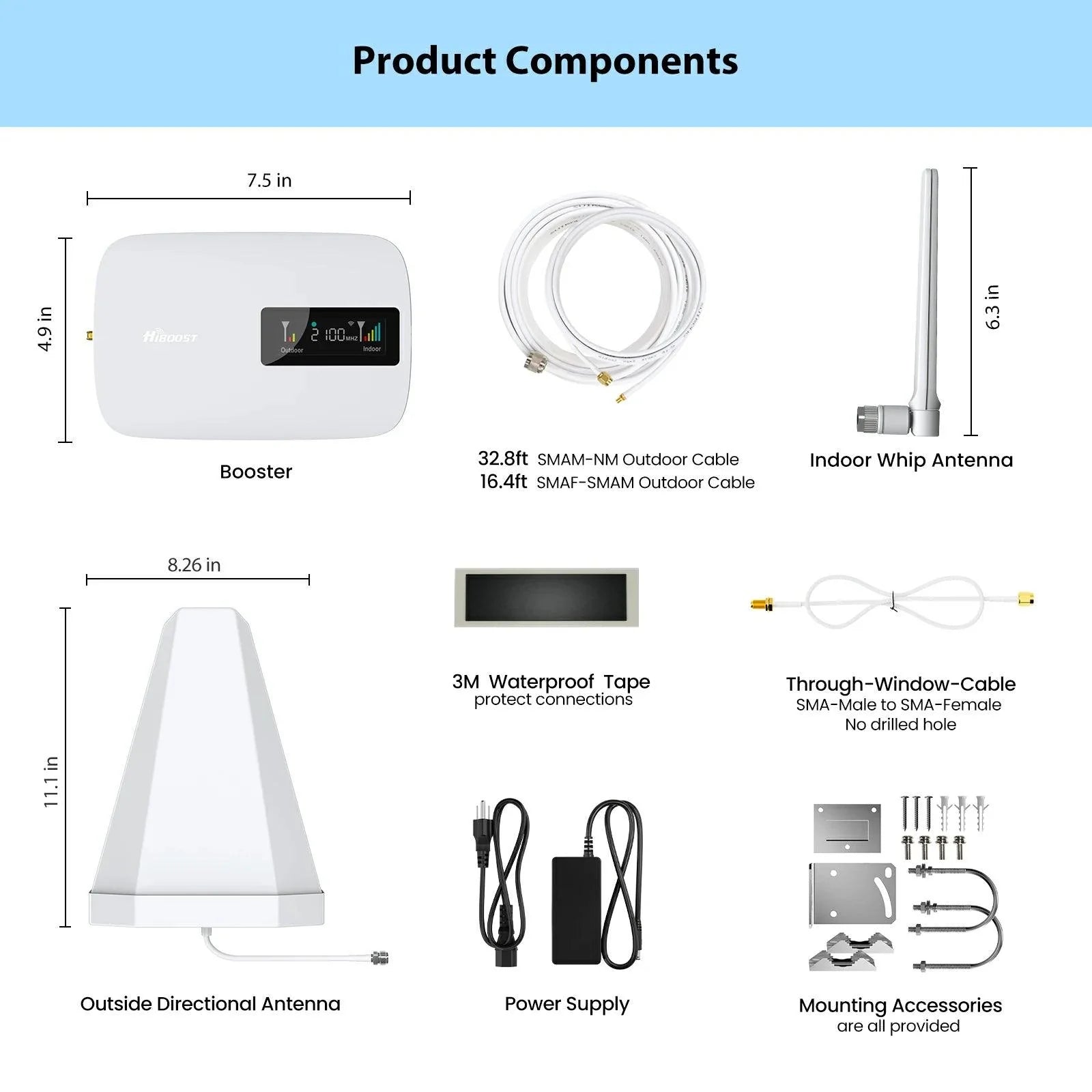

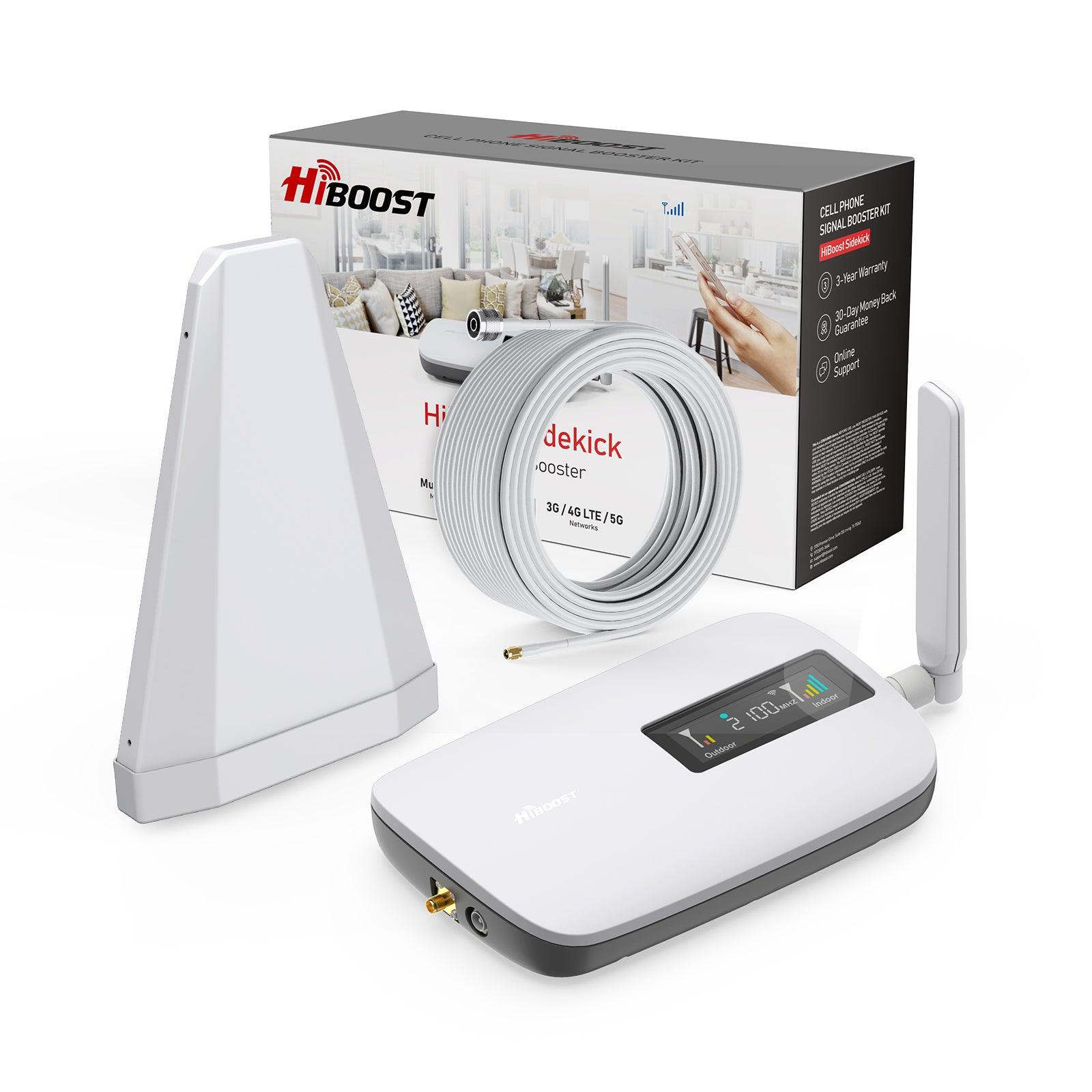

What's in the Box
- 1 x Signal Booster
- 1 x High-gain Outdoor Directional antenna
- 1 x Indoor Whip Antenna
- 1 x Through-Window-Cable
- 1 x 3M waterproof tape
- 1 x Accessories for main parts
- 1 x Power supply
- 1 x 16.4ft Cable
- 1 x Outdoor 32.8ft cable to booster
- 1 x User Manual

How to Install Your Signal Booster
Step 1:
Connect the Power Supply and the whip antenna to the Booster

Step 2:
Download the Signal Supervisor app and connect the booster.

Step 3:
Use the Signal Manager app to adjust the direction of the outdoor antenna. Find the best signal position, install the outdoor antenna, and connect it to the booster with the cable.

Step 4:
Install the booster and the cables.

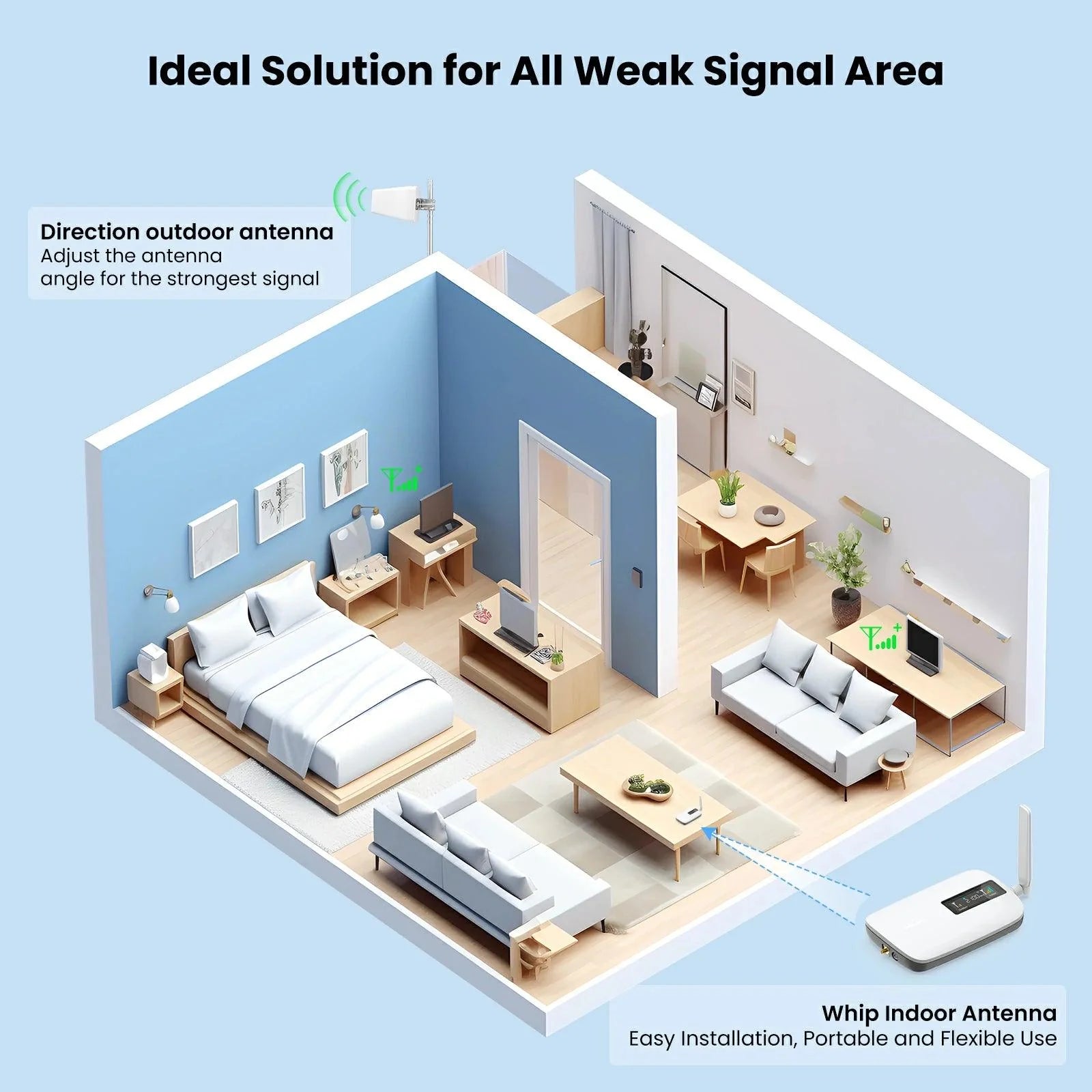

Note: It would be best if you could make the outdoor antenna and the indoor antennas face opposite directions.

Product Comparison




65 dB
68 dB
60 dB
65 dB
DL 10 dBm
DL 12 dBm
DL 10 dBm
DL 12 dBm
Outside Signal Strength
• 3,000 sq ft with 2 bars
• 4,200 sq ft with 3 bars
• 6,000 sq ft with 5 bars
Outside Signal Strength
• 6,000 sq ft with 2 bars
• 8,000 sq ft with 3 bars
• 12,000 sq ft with 5 bars
Outside Signal Strength
• 1,000 sq ft with 2 bars
• 2,000 sq ft with 3 bars
• 4,000 sq ft with 5 bars
Outside Signal Strength
• 4,000 sq ft with 2 bars
• 6,200 sq ft with 3 bars
• 10,000 sq ft with 5 bars
4-5 Rooms
Whole Home
2-3 Rooms
3-4 Rooms
Built-in Antenna & Panel Antenna
Built-in Antenna & Panel Antenna
Panel Antenna
Panel Antenna
All Canadian Carriers
All Canadian Carriers
All Canadian Carriers
All Canadian Carriers
Tech Specs
- WORKING BANDS Band12/17, Band13, Band5, Band25/2, Band4, Band66
- UL FREQUENCY RANGE 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755
- DL FREQUENCY RANGE 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155
- SUPPORTED STANDARDS CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all other cellular standards
- MAXIMUM GAIN 62dB
- MAXIMIUM OUTPUT POWER UL 18 dBm, DL 10 dBm
- MGC(STEP ATTENUATION) ≥25dB / 1dB step
- I/O PORT SMA-Female
- IMPEDANCE 50 ohm
- ENVIRONMENT CONDITION IP40
- DIMENSIONS 7.6*5*1.3 in / 192*126*33mm
- WEIGHT ≤ 1.68lbs / 0.76 kg
- POWER SUPPLY Input AC 100~240 V, 50/60 Hz, Output DC 12 V/3 A
